Metal Lined Vertical Slurry Pump ZV/40P

Brand: Nenglian
Model Number: ZV/40P
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-14 days
Payment Terms: T/T 100%
Supply Ability: 1000 sets per month
Packaging Details: Wooden crate
Color: Blue Material: A05 Function: It is designed for delivering abrasive, large partcle and high density slurries.

contact now

DESCRIPTION

Pump Model: ZV/40P

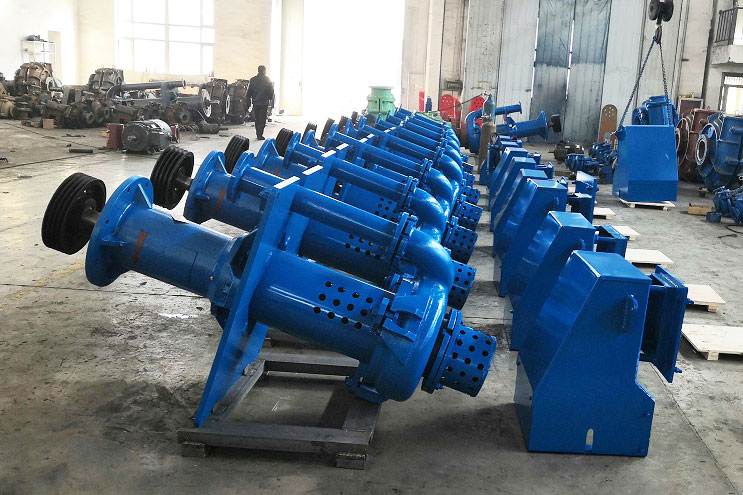

The SV heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the ZV sump pump ideally suited for heavy continous handling of abrasive liquids and slurries whilst submerged in sumps or pits. The rugged ZV heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:

Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
Sand and Gravel
and almost every other tank, pit or hole-in-the-ground slurry handling situation.

Material Construction:

Description	Standard Material	Optional Material
Impeller	A05	A33, A49
Casing	A05	A33, A49
Back Liner	A05	A33, A49
Shaft	Carbon Steel	SUS304, SUS316(L)
Discharge Pipe	20# Mild Steel	SUS304, SUS316(L)
Column	20# Mild Steel	SUS304, SUS316(L)

Specifications:

Pump Model	Allowable Max. Power (kw)	Material	Clear Water Performance					Impeller
		Material	Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	Length Shaft (mm)	No. of Vanes	Vane Dia. (mm)
		Impeller	m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	Length Shaft (mm)	No. of Vanes	Vane Dia. (mm)
ZV/40P	15	Metal (A05)	19.44-43.2	4.5-28.5	1000-2200	40	900	5	195
ZV/65Q	30		23.4-111	5-29.5	700-1500	50	1200		290
ZV/100R	75		54-289	5-35	500-1200	56	1500		390
ZV/150S	110		108-479.16	8.5-40	500-1000	52	1800		480
ZV/200S	110		189-891	6.5-37	400-850	64	2100		550
ZV/250T	200		180-1080	10-35	400-750	60	2400		605
ZV/300T	200		180-1440	5-30	350-700	62.1	2400		610
